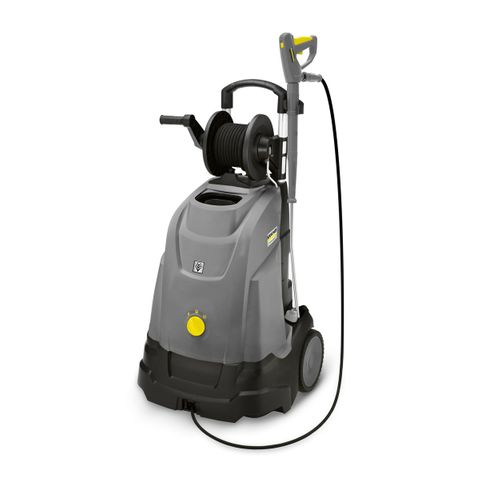

Karcher HDS 5/11 UX With Hose Reel
Description
The main benefit of the new "Upright"-class class of hot water high-pressure cleaners is the horizontal machine concept. This ensures low weight, compact dimensions, and the ease with which they can be loaded and transported. They fit also easily in vertical positions in a station wagon for transportation from one location to the next. Thanks to their compact size, these units take up a minimum of storage space when they are not in use. Large diameter wheels as well as an ergonomically shaped push/pull handle ensure excellent manoeuvrability and mobility, even on difficult surfaces. The three-piston axial high-pressure pump has hardened stainless-steel pistons and a brass cylinder head. A pressure switch shuts down the unit automatically when the trigger gun is closed. This relieves the load on components and prolongs their service lives. A high-pressure pump, burner fan, and heating-oil pump are driven by an electric motor and are combined to form a drive module. This principle not only ensures a very compact assembly and a high power output, it also makes the units exceptionally reliable. The characteristics of the time-proven Kärcher boiler technology are high performance in minimum space while ensuring full compliance with the statutory emission limits. Single-phase unit with air-cooled two-pole electric motor. Three-piston axial pump with hardened stainless-steel pistons. Chemical feed in low-pressure mode.
FEATURES AND BENEFITS
Integrated hose reel - Convenient, secure pressure hose storage. Ensures ergonomic operation. Reduced setup times.
Innovative upright design - Effortless transport over landings or stairs. Large wheels for unpaved surfaces.
Fine-mesh water filter - Efficiently protects high-pressure pump against contamination. Easy to remove from outside.
Compact design.
- Space-saving storage and transport.
- Spill-proof pump and fuel tank for vertical transport
- Ideal for small service vehicles.
Save energy and time: EASY! Force high-pressure guns and EASY!Lock quick-release locks.
- At last – work without getting tired: the EASY!Force high-pressure gun.
- EASY!Lock quick-release locks: durable and robust. And five times faster than screws.
Technical data
| Type of current (Phases/Volt/Hertz) | 1 / 230 / 50 |
| Flow rate (Litres per hour) | 450 |
| Operating pressure (Bar/Megapascal) | 110 / 11 |
| Temperature (Celsius) | Maximum 80 |
| Power rating (Kilowatt) | 2.2 |
| Fuel oil consumption, full load (Kilograms per hour) | 2.4 |
| Fuel tank (Litre) | 6.5 |
| Weight (with accessories) (Kilogram) | 67.4 |
| Weight incl. packaging (Kilogram) | 76.6 |
| Dimensions (L x W x H) (Millimetre) | 618 x 1163 x 994 |
